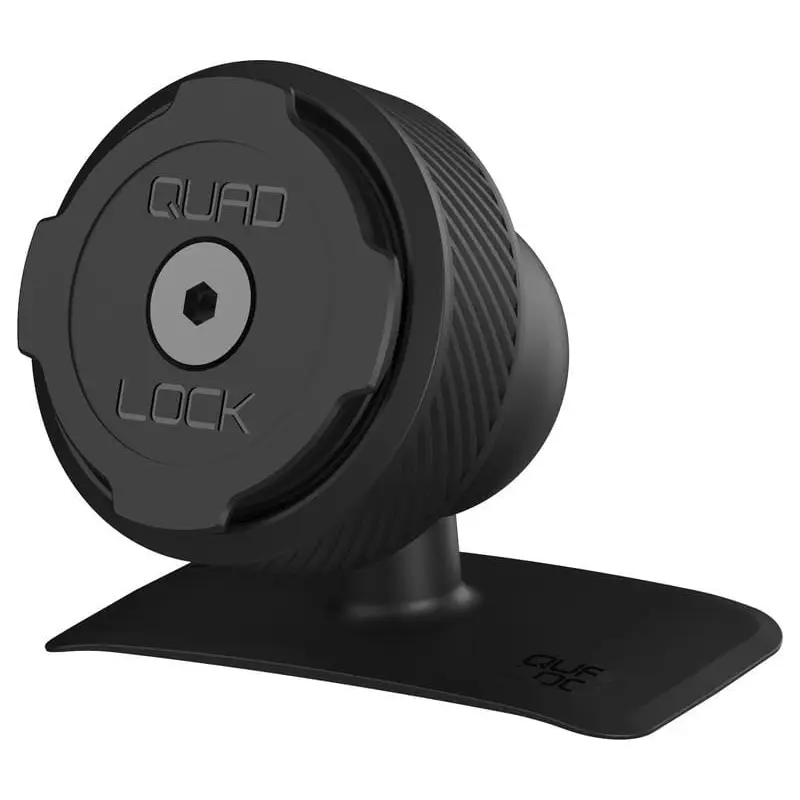

Quad Lock Adhesive Dash/ Console Car Mount
With 3M VHB adhesive and a flexible base, the Dash/Console mount can adhere to flat and slightly curved surfaces. Please see our recommended surface guidelines for more information on choosing the correct surface and mounting angle.
ADJUSTABLE VIEWING ANGLE
The single-pivot ball joint allows for 180º head articulation in the Z-axis and 360º rotation around the base. It's easy to mount your phone in the optimal viewing position.
Slim profile base and black hardware will integrate cleanly with your car's interior.
Included:
- 1 x Quad Lock® adhesive car dash/console mount
- 1 x Quad Lock 360™ top cap
- 1 x Spare 3m VHB adhesive pad
- 1 x alcohol wipe
Technical specifications:
- Glass-filled nylon
- TPU ball overmold
- 3M VHB adhesive
- Compatible with all Quad Lock® covers and universal adapters
- Compatible with Quad Lock® wireless charging head
- Compatible with all Quad Lock MAG™ heads
Surface guidance
Quad Lock® Adhesive Dash/Console Mount uses a 3M™ VHB 5611 adhesive that will adhere to smooth, non-textured, non-porous surfaces such as:
Plastics such as PC, ABS, PVC, Nylon, Acrylic (e.g. car panel or console)
Uncoated glass (e.g. windshield)
Metals
Fiberglass
The adhesive will not bond to the following substrates:
- Rubber, TPU, TPE
- Learn
- Silicone
- Soft coating or paint
- Plastics with low surface energy such as polypropylene (PP), polyethylene (PE), acetal, HDPE
Application temperature:
Ideal application temperature is between 21ºC (70ºF) to 38ºC (100ºF)
It is not recommended to attach the mount in temperatures below 10ºC (50ºF)
Make sure the surface is thoroughly cleaned and dry before applying the Dash/Console Mount.
3M™ VHB™ is a disposable adhesive and cannot be reused.
The dash/console mount is not recommended for use on motorcycles, scooters, ATVs, or other high frequency engine vibrations.
